Sanitary Stainless Steel Safety Valve / Expansion Valve / Pressure Reducing Valve

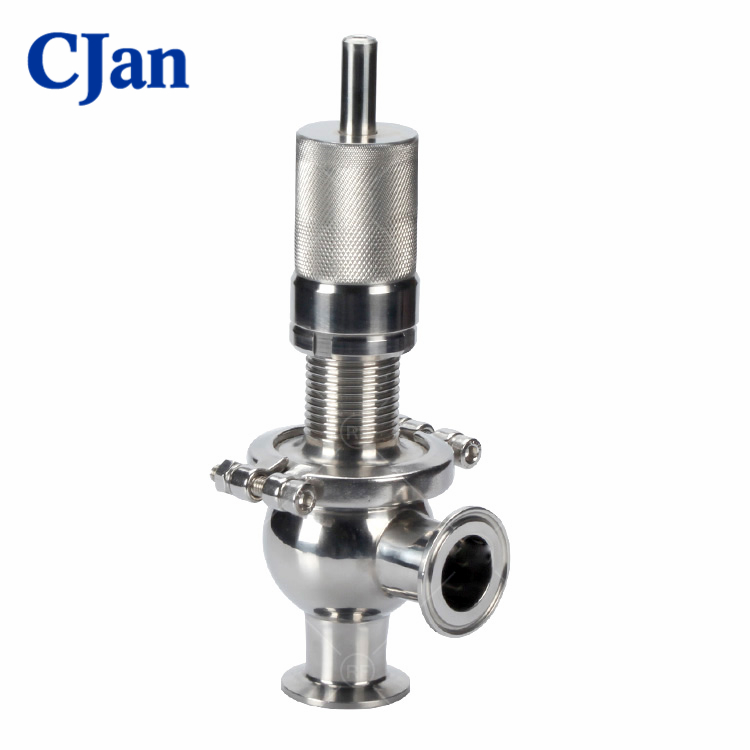

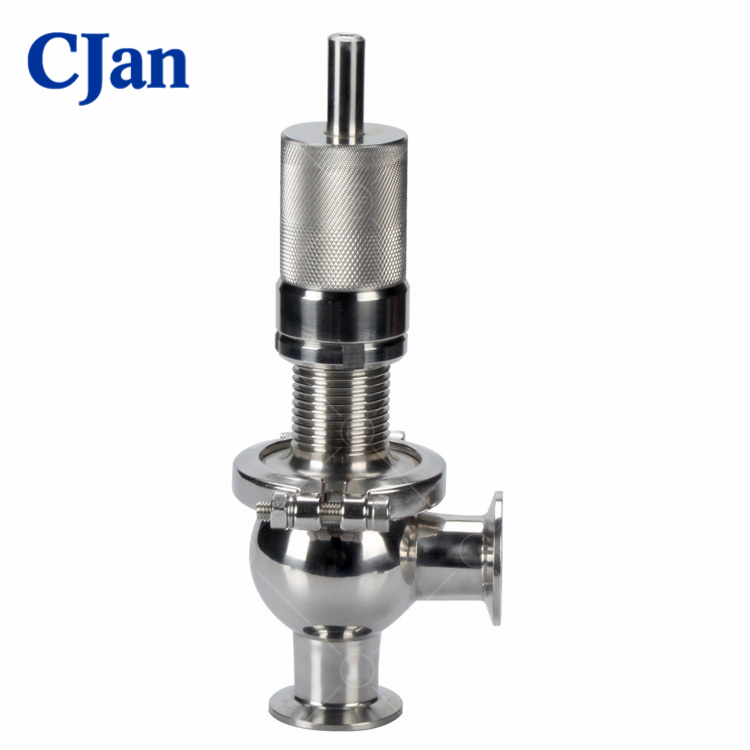

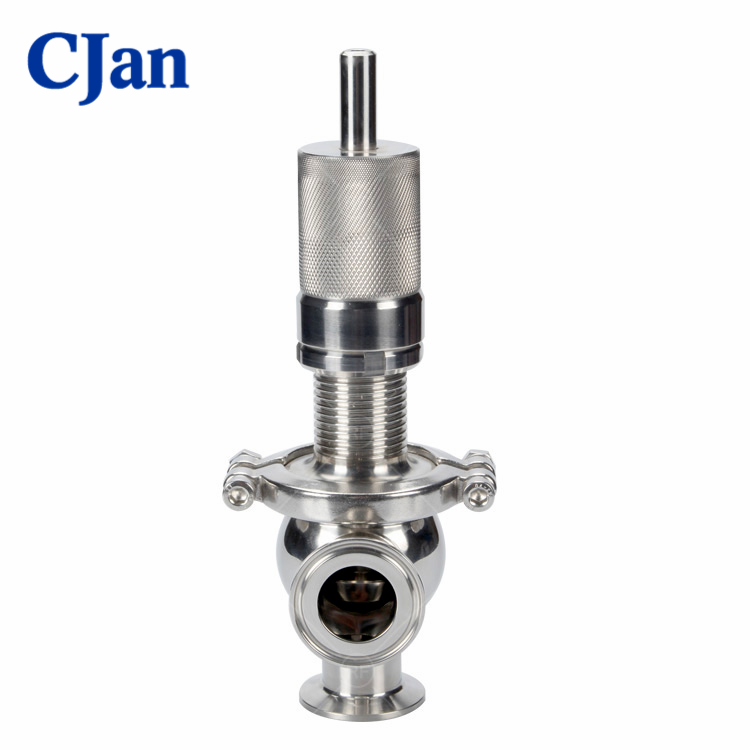

Sanitary Stainless Steel Safety Valve

Applications:
This series safety valve is the sanitary stainless steel safety valve, its safety design make it protect the equipment, so it installed in the return circuit of discharge pressure, it's good for safety protect function in pipeline, pump, device, storage tank, Extensiveloy use to food, beverage, dairy, beer industry etc.

Working Principle:
This series safety valve is calibration one specific pressure by adjust gland nut, calibration pressure is the max. Safety pressure in order to avoid equipment damange, Under the normal working pressure, the valve is close. When the pressure of system beyond the calibretion pressure, the valve will be open. The pressure in the pipeline system get release, this protect the pipeline and equipment.

Model No.	Sanitary Safety Valve
Size	1-2"
Working Pressure	Medium Pressure
Material	Body: SUS304, SUS316L etc.
	Gasket: EPDM, PTFE, etc.
Standard	ISO, DIN, 3A, SMS etc.
Working Temperature	Normal Temperature
Connection	Welding,  Clamped(Quick-Install), Union
Application	Dairy, Food, Drink, Beer, Cosmetics, Fine Chemical etc.
Drive	Manual, Pneumatic, Electric etc.
Surface Treatment	Mirror Polish, Matte etc.
Machine Processing	The Most Advanced CNC Machine From Japan For Processing.
Certificate	CE, 3A, ISO9001 etc.
