PFA Straight Union Panel Mount - CJSUP

PFA Straight Union Panel Mount - CJSUP

PFA Flare Plug - FPA

It is the same as the flare connector, can be connected to a tube through flared and locked with a nut to achieve pressu...
PFA Straight Union - SUA

Features: it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosiv...

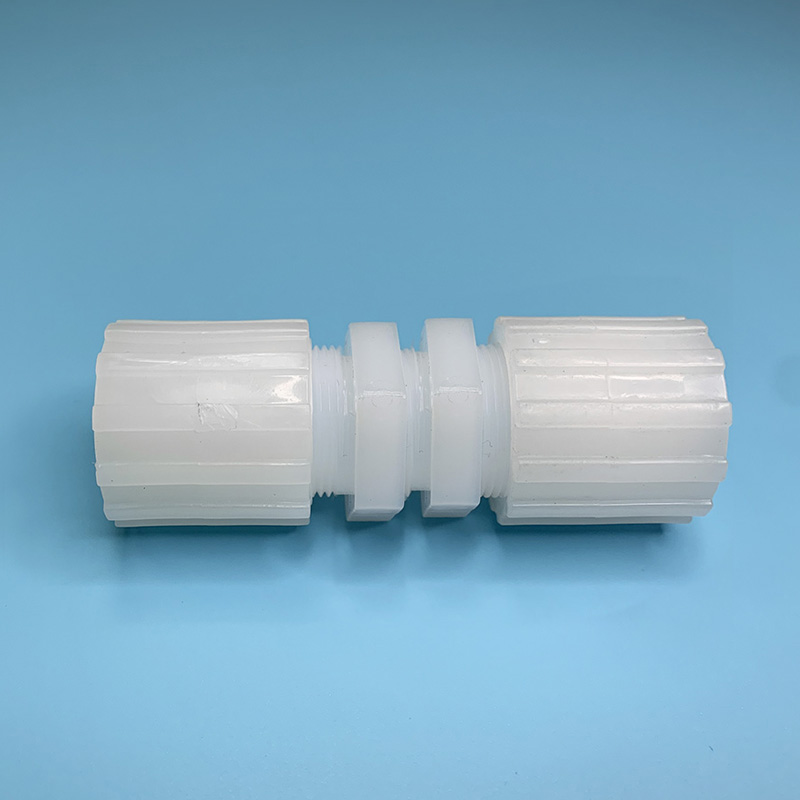

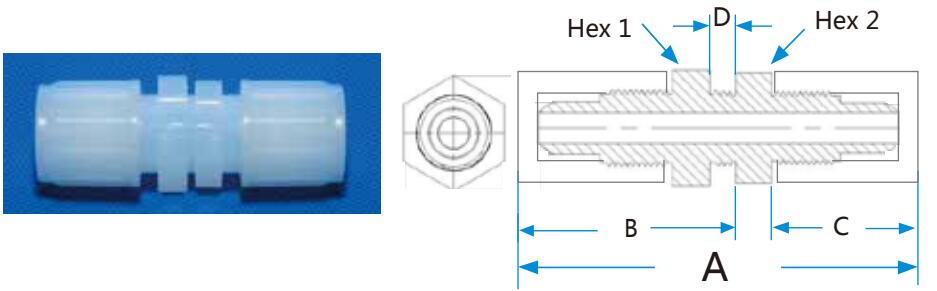

PFA Straight Union Panel Mount - CJSUP

Features: it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA(body) + PVDF(nut)
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA material
