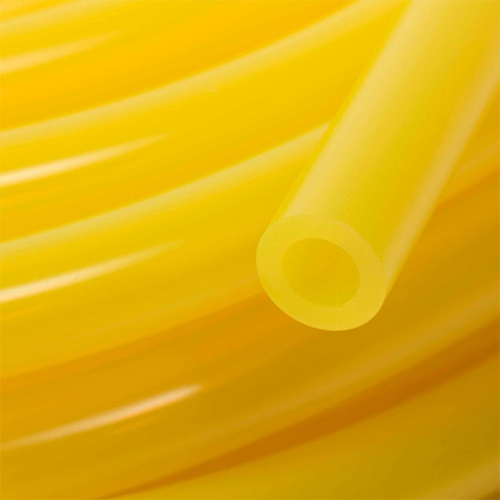

CJFLEX TF40 - Fuel and Lubricant Tubing. Application: Transportationof gasoline, kerosene, civil combustion oil, cutting...
CJFLEX PTK
Corrosion-resistant Fluororubber Tubing
Application: acid and solvent transportation; High temperature applications.
Characteristics: opaque, black.
Certification: FDA
Temperature range: - 30 to 200 º C
Disinfection: not recommended.
The strong corrosion resistant fluororubber hose PTK series is a special peristaltic pump pipe extruded from the confidential fluororubber resin. Its opaque black hose can protect the photosensitive material being transported, and will not crack and age prematurely under the influence of ozone, sunlight and bad weather.
In addition to the characteristics of acid resistance and chemical solvent resistance, this series is particularly resistant to ammonia, especially strong alkali solutions, and has good low-temperature physical properties. 60, 65 Shore A hardness specifications are available. Please consult technical service personnel for specific chemical solvent resistance.
Part No.
Tube No.
ID*OD（mm）
Color
Packing Length（ft）
PTK00160032
-
1.60*3.20
Black
50
PTK00200040
-
2.00*4.00
Black
50
PTK00500050
-
3.00*5.00
Black
50
PTK00160048
14#
1.59*4.76
Black
50
PTK00480096
15#
4.76*9.53
Black
50
PTK00320064
16#
3.18*6.35
Black
50
PTK00640096
17#
635*9.53
Black
50
PTK00790111
18#
7.94*11.11
Black
50
PTK00640112
24#
6.35*11.11
Black
50
PTK00480080
25#
4.76*7.94
Black
50
PTK00400072
-
4.00*7.20
Black
50
PTK00640127
26#
6.35*12.70
Black
50
PTK00790127
35#
7.94*12.70
Black
50
PTK00960144
36#
9.53*14.29
Black
50
PTK00960160
73#
9.53*15.88
Black
50
PTK01270191
82#
12.70*19.05
Black
50
