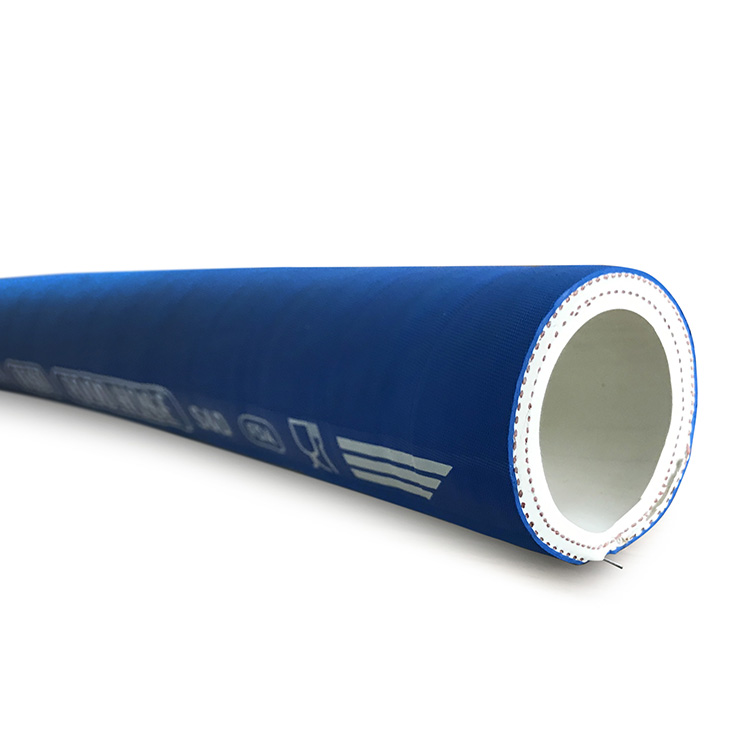

TYPE EFSD EPDM Food Suction and Delivery HoseApplications: Suction and delivery of liquid foodstuffs such as fruit juice...

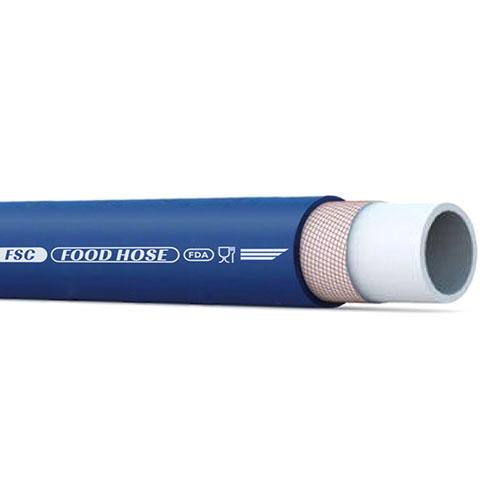

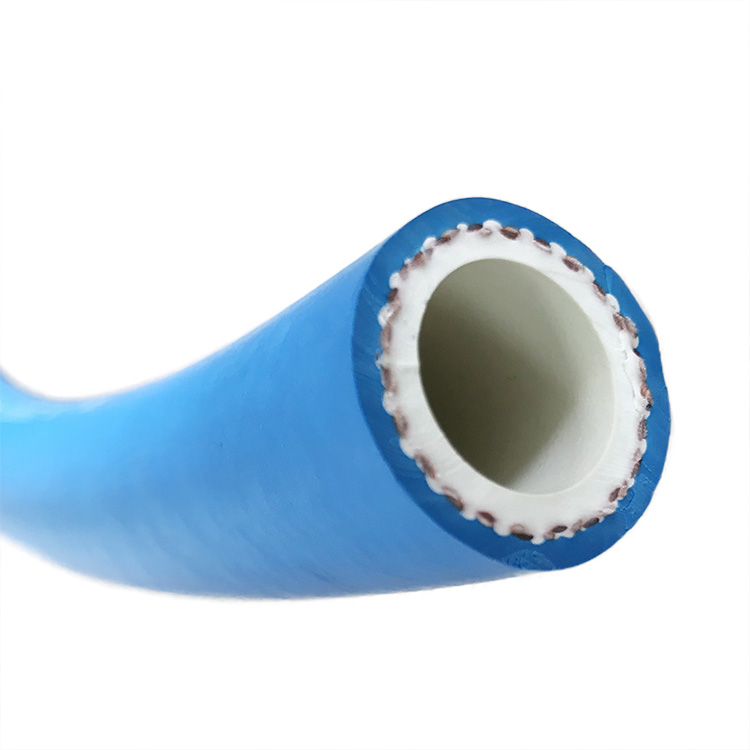

TYPE FSC
Food grade NBR delivery hose for steam and hot water
(oil resistant)
Applications:
For hot water washing in food processing
plants. Also for transfer of hot liquid foodstuffs. ID 9.5 to 25.4mm, suitable
for reel mounted applications.
Construction:
Tube: White NBR, oil resistant, smooth.
Reinforcement: Synthetic textile.
Cover: Blue CSM, oil and weather resistant,
smooth for ID 9.5 to 25.4 mm, fabric impression for ID 32 to 76mm.
Temperature range: –30°C～+120°C
Standard/Approval: FDA 21 CFR 177.2600, GB 4806.11-2016.
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Length | |
| inch | mm | mm | mm | bar | bar | m | |
| FSC010 | 3/8" | 9.5 | 17 | 55 | 20 | 60 | 100 |
| FSC013 | 1/2" | 12.7 | 22 | 65 | 20 | 60 | 100 |
| FSC016 | 5/8" | 15.9 | 25 | 85 | 20 | 60 | 60 |
| FSC019 | 3/4" | 19 | 30 | 100 | 20 | 60 | 60 |
| FSC025 | 1" | 25.4 | 37 | 125 | 20 | 60 | 60 |
| FSC032 | 1-1/4" | 32 | 44 | 250 | 10 | 40 | 40 |
| FSC038 | 1-1/2" | 38 | 51 | 300 | 10 | 40 | 40 |
| FSC051 | 2" | 50.8 | 66 | 400 | 10 | 40 | 40 |
| FSC064 | 2-1/2" | 63.5 | 80 | 500 | 10 | 40 | 40 |
| FSC076 | 3" | 76 | 94 | 600 | 10 | 40 | 40 |
