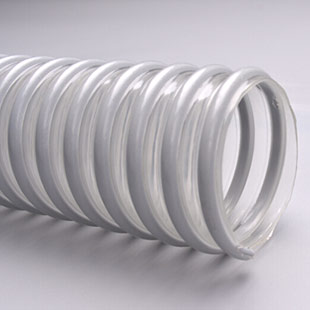

TYPE FUSD - FOOD GRADE PU SUCTION HOSE WITH WIRE HELIX. APPLICATIONS: suction and transport hose in the Food and Phar...
TYPE VPSD - FOOD GRADE PVC SUCTION HOSE. Applications: ideal solution for suction and delivery of beverages with alcohol...

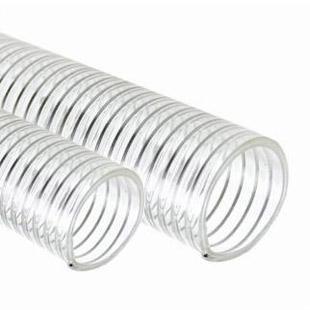

TYPE FVSD
FOOD GRADE PVC SUCTION HOSE WITH WIRE HELIX
Application: ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol concentration.
Features: flexible hose reinforced with steel spiral.
Resistant to several chemicals and to weather conditions.
Colour: transparent with steel spiral
Temperature Range: -10°C + 60°C
Standards: FDA, EU, REACH
| Part no. | ID | OD | Work pressure | Bursting pressure | Weight | Length | |
| inch | mm | mm | bar | bar | kg/m | m | |
| FVSD006 | 1/4" | 6 | 11 | 8 | 24 | 0.12 | 100 |
| FVSD008 | 5/16" | 8 | 14 | 8 | 24 | 0.15 | 100 |
| FVSD009 | 3/8" | 9 | 15 | 8 | 24 | 0.17 | 100 |
| FVSD010 | 3/8" | 10 | 16 | 8 | 24 | 0.20 | 100 |
| FVSD012 | 1/2" | 12 | 18 | 8 | 24 | 0.22 | 100 |
| FVSD015 | 5/8" | 15 | 22 | 6 | 18 | 0.30 | 50 |
| FVSD019 | 3/4" | 19 | 26 | 6 | 18 | 0.36 | 50 |
| FVSD020 | 3/4" | 20 | 26 | 6 | 18 | 0.32 | 50 |
| FVSD022 | 7/8" | 22 | 27 | 6 | 18 | 0.30 | 50 |
| FVSD025 | 1" | 25 | 33 | 5 | 15 | 0.54 | 50 |
| FVSD032 | 1-1/4" | 32 | 40 | 5 | 15 | 0.70 | 50 |
| FVSD038 | 1-1/2" | 38 | 48 | 5 | 15 | 1.00 | 50 |
| FVSD045 | 1-3/4" | 45 | 56 | 5 | 15 | 1.30 | 50 |
| FVSD048 | 1-7/8" | 48 | 59 | 5 | 15 | 1.40 | 50 |
| FVSD050 | 2" | 50 | 62 | 5 | 15 | 1.60 | 50 |
| FVSD058 | 2-5/16" | 58 | 69 | 4 | 12 | 1.60 | 40 |
| FVSD064 | 2-1/2" | 64 | 78 | 4 | 12 | 2.50 | 30 |
| FVSD076 | 3" | 76 | 90 | 4 | 12 | 3.00 | 30 |
| FVSD090 | 3-1/2" | 90 | 108 | 4 | 12 | 4.50 | 20 |
| FVSD102 | 4" | 102 | 116 | 4 | 12 | 4.30 | 20 |
