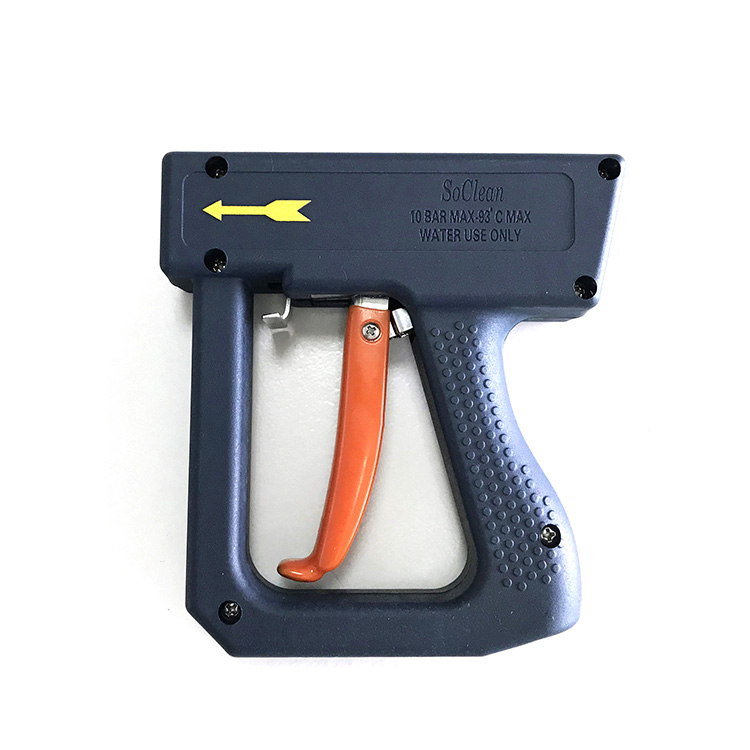

TYPE HF - High Flow Water Spray Gun

TYPE HF - High Flow Water Spray Gun

TYPE HF - High Flow Water Spray Gun

Description:
The HF Water Spray Gun was specifically designed to prevent accidental spray. Its unique cover design is not only durable but also prevents the front mounted levers which reduce hand fatigue and offer smooth lever action, from being accidentally activated when the nozzle is dropped. It also comes with a trigger locking mechanism for a safe and secure method of maintaining the nozzle open at any spray pattern.
Variable spray patterns, adjustable from fan spray to solid stream, is one of the many features offered by the HF water gun. Water conservation is assured upon release of the lever by the drip-free automatic shut off feature.

Rating:150PSI/93℃.
Maximum tested operating pressure of 500 PSI. Not for use with steam.
Applications: Effectively clean floor, equipment of workplace in a food factory, pharmacy factory, biology laboratory, petrochemical industry and so on.
Color: Can be customized.

Part no. Thread Colour Material Weight Inlet Pressure Flow Rate
inch - - kg (PSIG) (GPM)
HF 1/2"NPT CJan SS 0.6 25 4.39
1/2"NPT CJan SS 0.6 50 6.54
1/2"NPT CJan SS 0.6 75 8.18
1/2"NPT CJan SS 0.6 100 9.56
1/2"NPT CJan SS 0.6 125 10.83
1/2"NPT CJan SS 0.6 150 11.89
