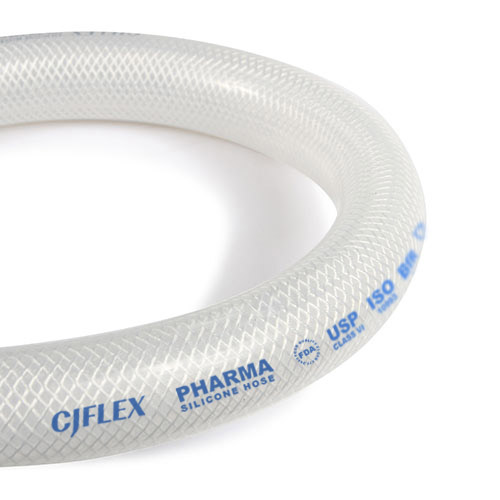

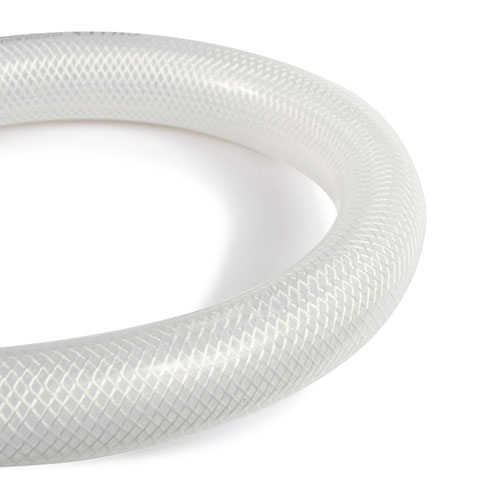

TYPE GF
Glass Fiber Braid Reinforced Silicone Hose
Construction:
Type GF is manufactured from High purity platinum cured Silicone with glass fiber reinforcement.
Temp. Range: -60℃ and 260℃.
Color: Translucent (Colored covers available)
Applications:
For transporting high temperature liquids where a closed Bending radius is not required. It is not recommended for Vacuum. Suitable for CIP and SIP cleaning.
Certification: FDA, USP, BFR, USDA, ISO 10993.
Length: Standard maximum length is 50 meters, for a longer length, please contact us.
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | |
| in. | mm | mm | mm | bar | bar | |
| GF003 | 1/8" | 3 | 9 | 15 | 21 | 63 |
| GF004 | 1/6" | 4 | 10 | 20 | 20 | 60 |
| GF005 | 3/16" | 4.8 | 11 | 25 | 18 | 54 |
| GF006 | 1/4" | 6.4 | 13 | 40 | 17 | 51 |
| GF008 | 5/16" | 7.9 | 15 | 45 | 15 | 45 |
| GF010 | 3/8" | 9.5 | 17 | 60 | 14 | 42 |
| GF013 | 1/2" | 12.7 | 22 | 70 | 11 | 33 |
| GF016 | 5/8" | 15.9 | 25 | 85 | 10 | 30 |
| GF019 | 3/4" | 19 | 31 | 95 | 9 | 27 |
| GF022 | 7/8" | 22 | 34 | 145 | 6.5 | 19.5 |
| GF025 | 1" | 25.4 | 36 | 160 | 6 | 18 |
| GF032 | 1-1/4" | 32 | 42 | 200 | 5 | 15 |
