TYPE VPSD
FOOD GRADE PVC SUCTION HOSE
Applications: ideal solution for suction and delivery of beverages with alcohol concentration up to 20%. Suggested for wines, marcs, liquors and other beverages and food liquids.
Features:
Hose made with plasticized vinylic compound with spiral, smooth inside and outside for heavy duty thus flexible.
Resistance to loads, atmospherical agents and to a wide range of chemicals. Resistance to hydrolysis.

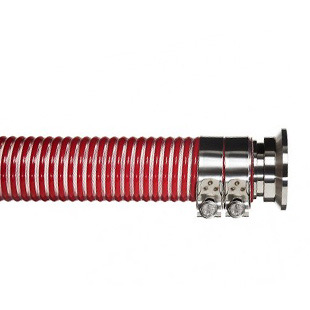

Colour: transparent with red plastic spiral.
Temperature Range:10°C + 60°C
Standards: RoHS
| Part no. | ID | OD | Work pressure | Bursting pressure | Weight | Length | |
| inch | mm | mm | bar | bar | kg/m | m | |
| VPSD019 | 3/4" | 19 | 25 | 8 | 24 | 0.28 | 30 |
| VPSD025 | 1" | 25 | 31 | 8 | 24 | 0.35 | 30 |
| VPSD032 | 1-1/4" | 32 | 40 | 8 | 24 | 0.50 | 30 |
| VPSD038 | 1-1/2" | 38 | 48 | 8 | 24 | 0.75 | 30 |
| VPSD050 | 2" | 50 | 58 | 7 | 21 | 0.92 | 30 |
| VPSD050 | 2" | 50 | 60 | 7 | 21 | 1.05 | 30 |
| VPSD063 | 2-1/2" | 63 | 73 | 6 | 18 | 1.30 | 30 |
| VPSD075085 | 3" | 75 | 85 | 5 | 15 | 1.65 | 30 |
| VPSD075087 | 3" | 75 | 87 | 5 | 15 | 1.90 | 30 |
| VPSD100112 | 4" | 100 | 112 | 5 | 15 | 2.90 | 30 |
| VPSD100114 | 4" | 100 | 114 | 5 | 15 | 3.20 | 30 |
| VPSD100116 | 4" | 100 | 116 | 6 | 18 | 3.70 | 30 |
| VPSD125139 | 5" | 125 | 139 | 4 | 12 | 3.60 | 20 |
| VPSD125141 | 5" | 125 | 141 | 4 | 12 | 4.00 | 20 |
| VPSD152170 | 6" | 152 | 170 | 4 | 12 | 7.20 | 10 |
| VPSD152170 | 6" | 152 | 174 | 5 | 15 | 8.00 | 10 |
| VPSD200 | 8" | 200 | 216 | 3 | 9 | 6.70 | 10 |
