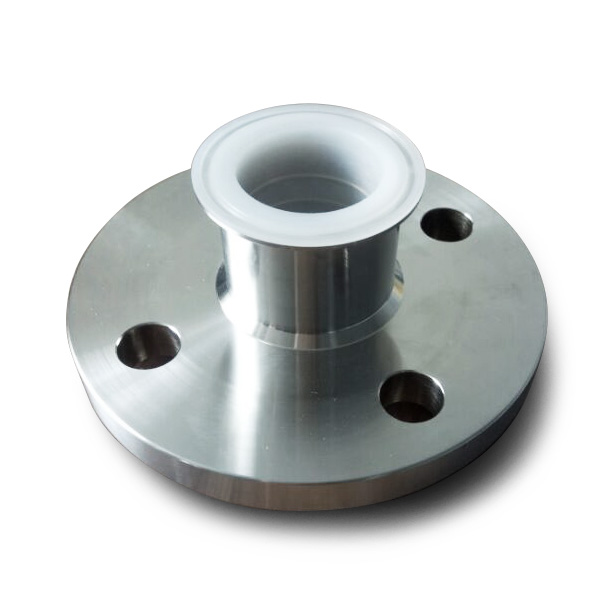

PFA lined swivel flange with toothed hose shankSwivel flange with toothed hose shank for connect with another hose close...
Fitting standard: A-A-59326/DIN 2828FEP or PTFE liners are available.Virgin and anti-static liners are available.Remark:...
Remark: Can be customized.
Part
no.
Material
Size
Flange ΦK(mm)
TC OD(mm)
PLRLTC040025S4
SS304+PFA
1.5"FL-1.0"TC
110
50.5
PLRLTC050025S4
SS304+PFA
2.0"FL-1.0"TC
125
50.5
PLRLTC050040S4
SS304+PFA
2.0"FL-1.5"TC
125
50.5
PLRLTC065025S4
SS304+PFA
2.5"FL-1.0"TC
145
50.5
PLRLTC065040S4
SS304+PFA
2.5"FL-1.5"TC
145
50.5
PLRLTC065050S4
SS304+PFA
2.5"FL-2.0"TC
145
64
PLRLTC080025S4
SS304+PFA
3.0"FL-1.0"TC
160
50.5
PLRLTC080040S4
SS304+PFA
3.0"FL-1.5"TC
160
50.5
PLRLTC080050S4
SS304+PFA
3.0"FL-2.0"TC
160
64
PLRLTC080065S4
SS304+PFA
3.0"FL-2.5"TC
160
77.5
PLRLTC100040S4
SS304+PFA
4.0"FL-1.5"TC
180
50.5
PLRLTC100050S4
SS304+PFA
4.0"FL-2.0"TC
180
64
PLRLTC100050S4
SS304+PFA
4.0"FL-2.5"TC
180
77.5
PLRLTC100080S4
SS304+PFA
4.0"FL-3.0"TC
180
91
Remark:
FL=Flange
TC=Tri-clamp
Flange ΦK=Center circle diameter of flange bolt hole
TC OD=Tri-clamp dish OD
