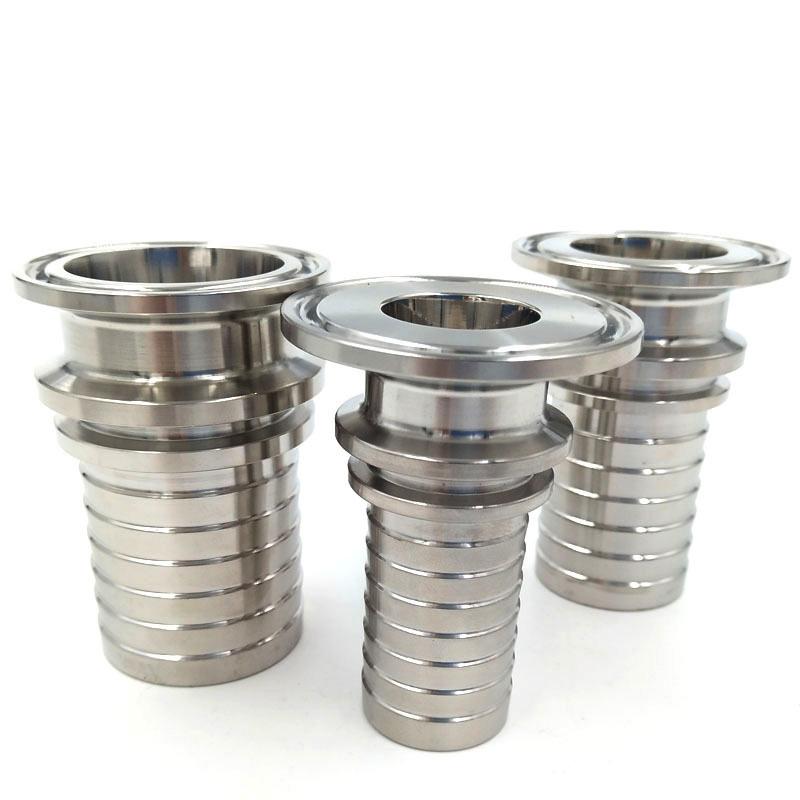

Fittings standard: DIN 28450Assembly: safety clamp Working pressure: 16bar.
Swivel flange with toothed hose shank for connect with another hose closely, no easy to drop.Other flange standards are ...
Remark: Can be customized.
| Part no. | Material | Standard | Size | For hose | Dish OD | Dish ID |
| mm | ||||||
| TC010S6L-DIN | SS316L | DIN | 10 | 13 | 34 | 9/10 |
| TC015S6L-DIN | SS316L | DIN | 15 | 16 | 34 | 15/16 |
| TC020S6L-DIN | SS316L | DIN | 20 | 19 | 34 | 19/20 |
| TC025S6L-DIN | SS316L | DIN | 25 | 25 | 50.5 | 25/26 |
| TC032S6L-DIN | SS316L | DIN | 32 | 32 | 50.5 | 31/32 |
| TC040S6L-DIN | SS316L | DIN | 40 | 38 | 50.5 | 37/38 |
| TC050S6L-DIN | SS316L | DIN | 50 | 50 | 64 | 49/50 |
| TC065S6L-DIN | SS316L | DIN | 65 | 63 | 91 | 66 |
| TC080S6L-DIN | SS316L | DIN | 80 | 75 | 106 | 81 |
| TC100S6L-DIN | SS316L | DIN | 100 | 100 | 119 | 100 |
| TC125S6L-DIN | SS316L | DIN | 125 | 125 | 155 | 125 |
| TC150S6L-DIN | SS316L | DIN | 150 | 150 | 183 | 150 |
| TC200S6L-DIN | SS316L | DIN | 200 | 200 | 233.5 | 200 |
