TYPE TCSPF - Polyster Fibre Cover TCS. Construction: Type TCSPF is manufactured from convoluted PTFE tube with stainle...
TYPE TCGS - Stainless Steel Braid Cover Convoluted PTFE Tube（glass fiber reinforced）. Construction: Type TCGS is manufactured...

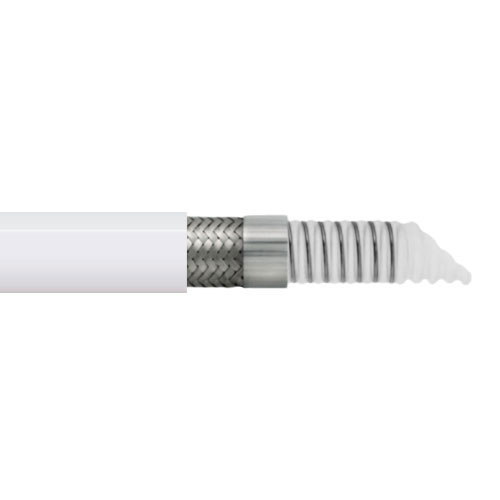

TYPE TCWSSW
White Silicone Cover TCWS
Construction: A helically convoluted PTFE (Polytetrafluorethylene) suction/pressure hose, with external vacuum wire with silicone vulcanized high tensile stainless steel braid. The hose has very good vacuum and kink resistance.
Temp. Range: -60°C and +200°C.
Applications: It should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength. Silicone vulcanized stainless steel braid ensures a high flexibility and easy cleanability. Making it ideal for Food, Bio, and Cosmetic industry.
Certification: FDA
| Part no. | ID | Mini OD | Tube Wall thickness |
Bending radius |
Work pressure | Bursting pressure | |
| in. | mm | mm | mm | mm | bar | bar | |
| TCWSSW010 | 3/8" | 9.5 | 19.1 | 0.75 | 25 | 110 | 440 |
| TCWSSW013 | 1/2" | 12.7 | 22.1 | 0.75 | 35 | 100 | 400 |
| TCWSSW016 | 5/8" | 15.9 | 27.9 | 0.75 | 45 | 85 | 340 |
| TCWSSW019 | 3/4" | 19 | 31.4 | 0.90 | 50 | 80 | 320 |
| TCWSSW025 | 1" | 25.4 | 39.4 | 1.00 | 70 | 60 | 240 |
| TCWSSW032 | 1-1/4" | 32 | 51.1 | 1.00 | 85 | 45 | 180 |
| TCWSSW038 | 1-1/2" | 38 | 56.4 | 1.00 | 110 | 35 | 140 |
| TCWSSW051 | 2" | 50.8 | 69.9 | 1.10 | 140 | 25 | 100 |
