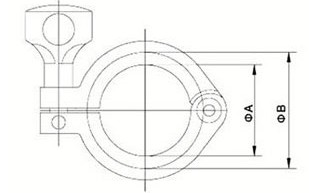

Heavy duty single pin clamp
13MHH
| Part no. | Size | A | B | ||
| 3A | DIN | ISO1127 | |||
| 13MHH025 | 1/2"-3/4" |
|
|
20 | 28 |
| 13MHH034 |
|
DN10-20 | 10.2-21.3 | 27.8 | 37 |
| 13MHH050 | 1.5" | DN25-40 | 26.9-42.4 | 44.4 | 53.6 |
| 13MHH064 | 2" | DN50 | 48.3 | 57.8 | 67 |
| 13MHH078 | 2.5" |
|
60.3 | 71.4 | 80.6 |
| 13MHH091 | 3" | DN65 | 76.1 | 84 | 94.2 |
| 13MHH106 | 3.5" | DN80 | 88.9 | 99 | 109.2 |
| 13MHH119 | 4" | DN100 |
|
110 | 122 |
| 13MHH130 | 4.5" |
|
114.3 | 123 | 133.2 |
| 13MHH155 |
|
DN125 | 139.7 | 144 | 159 |
| 13MHH167 | 6" |
|
|
155.4 | 170.4 |
| 13MHH183 |
|
DN150 | 168.3 | 172 | 187 |
| 13MHH218 | 8" |
|
|
205 | 220 |
| 13MHH234 |
|
DN200 | 219.1 | 222.5 | 237.5 |
| 13MHH269 | 10" | DN250 |
|
257 | 272 |
| 13MHH319 | 12" | DN300 |
|
308 | 323 |
