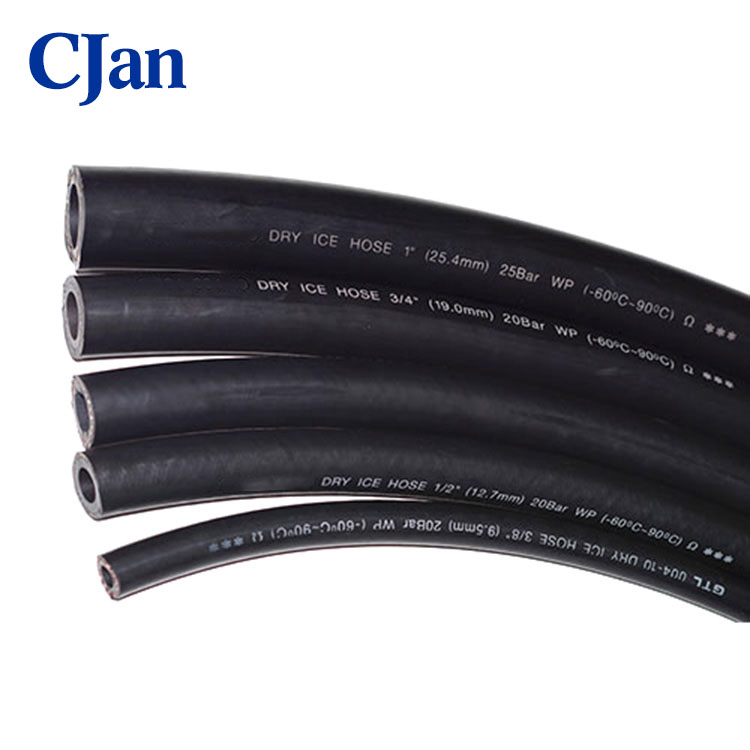

TYPE DI - DRY ICE HOSE
Applications:
It is specially used for transporting dry ice for spraying and cleaning and can be applied to special sand blasting service industry of specific industrial sector.
Technical characteristics:
Outer rubber layer or inner rubber layer is conductive, with specific resistance R<106 ohmm.
Construction:
Tube: Black low-temperature resistant, wear resistant and antistatic synthetic rubber;
Reinforcement: High-strength synthetic fiber braided layer;
Cover: Black super low-temperature resistant, wear resistant, anti-ageing and antistatic synthetic rubber.
Temperature range: -60 °C +100 °C
Standard/Approval:ROHS
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Length | |
| inch | mm | mm | mm | bar | bar | m | |
| DI010 | 3/8" | 9.5 | 17.5 | 100 | 15 | 60 | 100 |
| DI010 | 3/8" | 9.5 | 20 | 120 | 20 | 80 | 100 |
| DI013 | 1/2" | 12.7 | 25 | 120 | 20 | 80 | 100 |
| DI016 | 5/8" | 15.9 | 28 | 150 | 15 | 60 | 60 |
| DI019 | 3/4" | 19 | 31 | 170 | 10 | 40 | 60 |
| DI019B | 3/4" | 19 | 33.5 | 170 | 20 | 80 | 60 |
| DI025 | 1" | 25.4 | 38 | 200 | 10 | 40 | 60 |
| DI025B | 1" | 25.4 | 40 | 200 | 25 | 100 | 60 |
